R26m

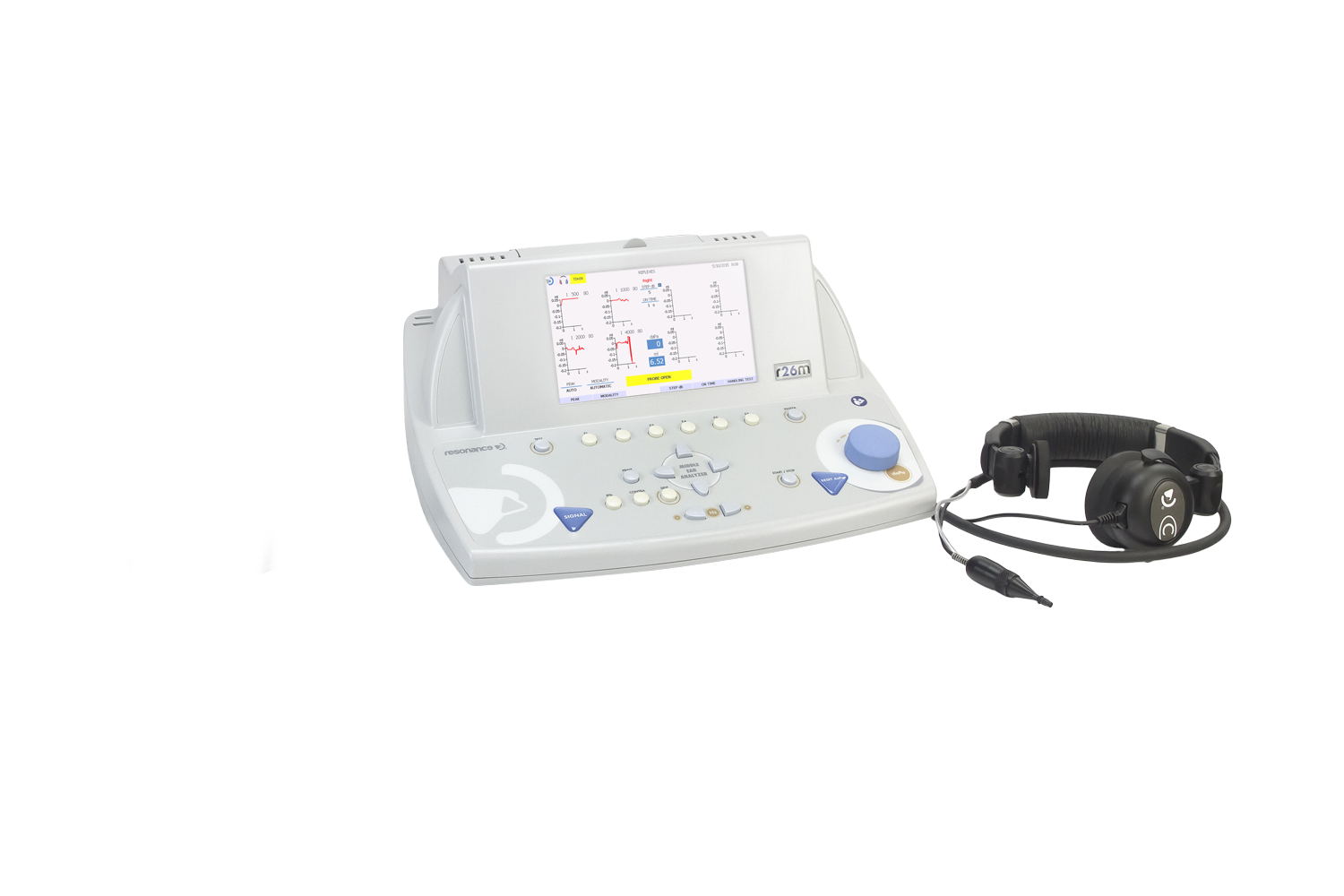

The automatic impedance audiometer can be used for diagnostic as well as for clinical tympanometry.

The easy-to-use device software and the automatic test routines makes the derivation of the tympanometry and reflex measurement a child`s play.

In the 7“ color display all important informationen can be seen and the measurement can be tracked in real time.

Using the animation software children can be distracted from the measurement process and therefore you will get better results.

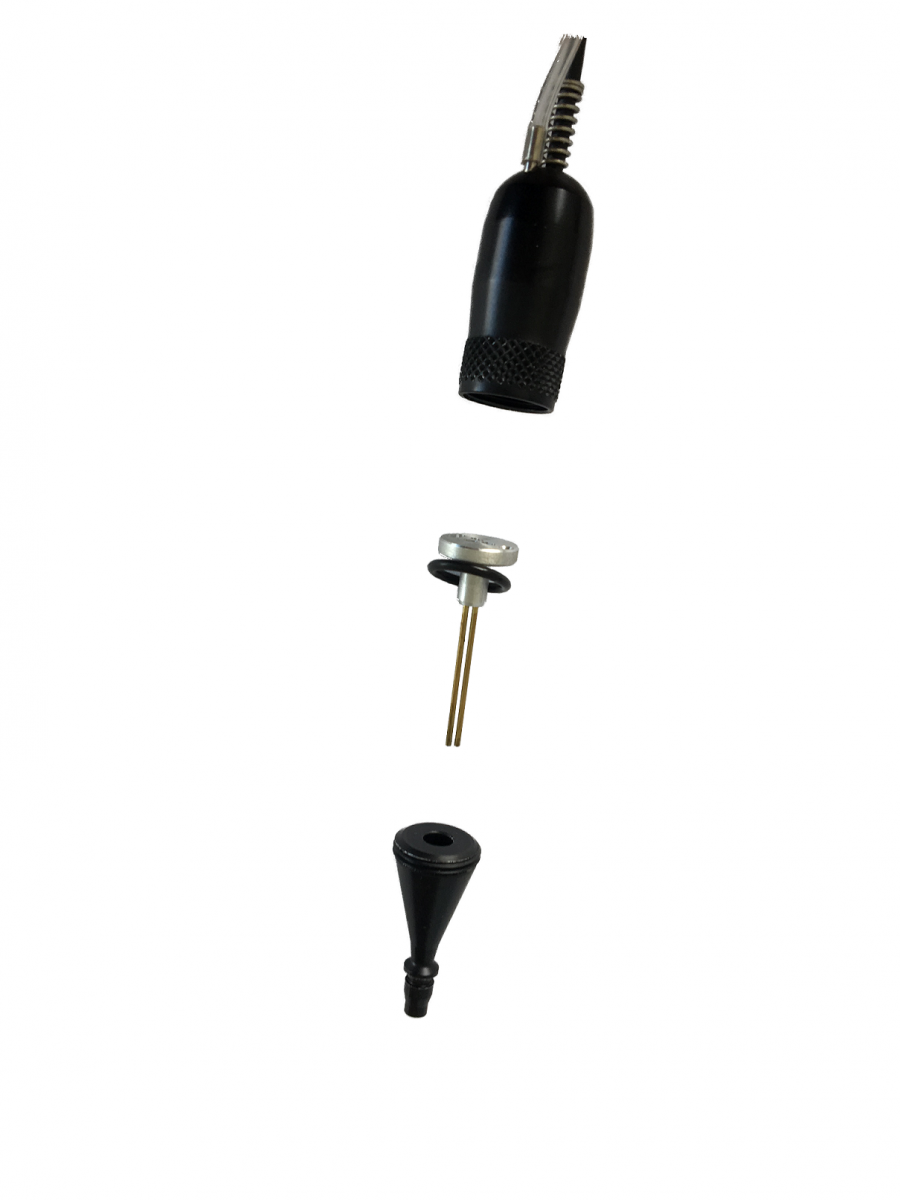

The outstanding thing about this tympanometer is the sturdy and easy-to-desinfect probe made of metal.

This is particularly important in the context of increasingly strict hygiene regulations in medical practices and clinics.

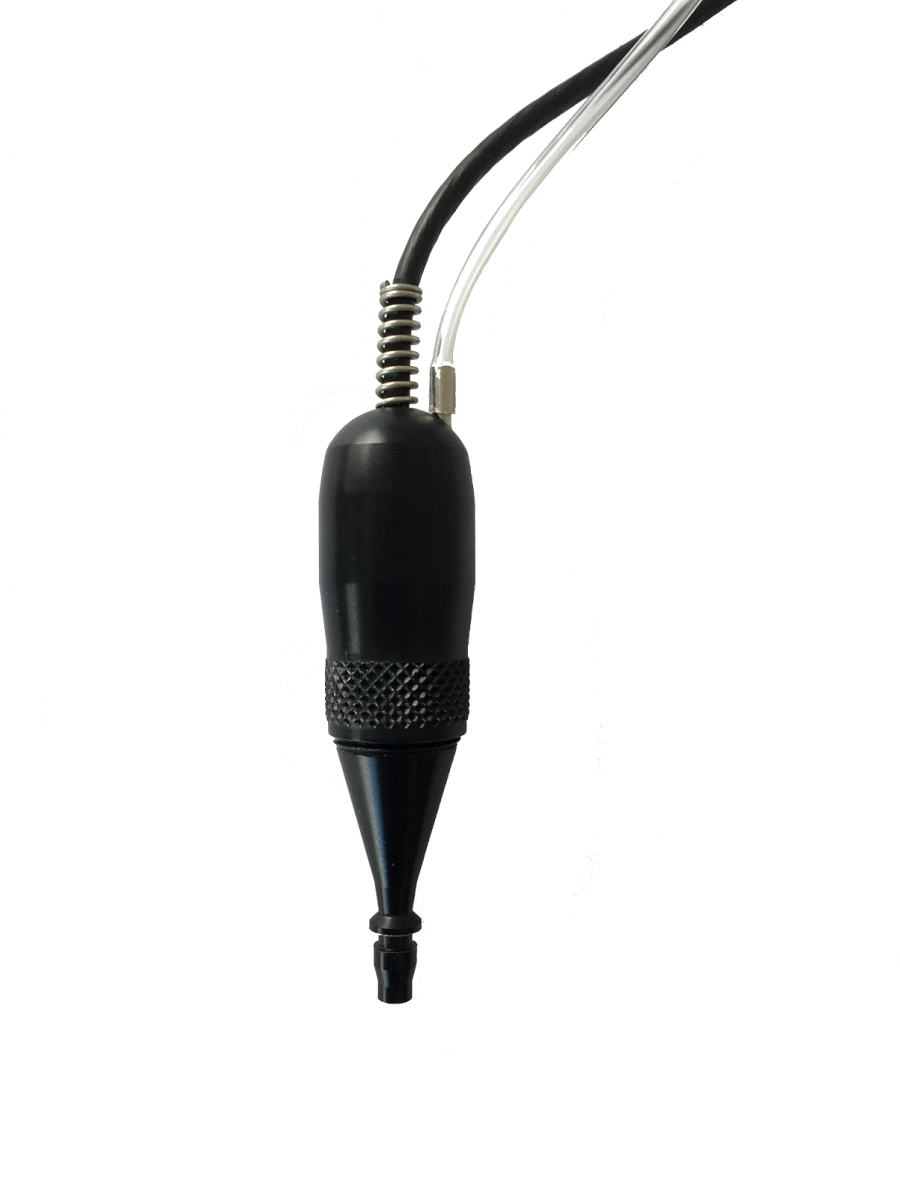

The new probe-handle allows easy and quick placement in the auditory canal.

For dokumentation you can use the build-in printer or you can transfer the data to the PC and use our FastSwapApp

Technical data:

• Pressure range up +200daPa to -400 daPa
• Ipsi lateral reflex measurement: 50 to 110 dBFrequency: 500, 1000, 2000, 4000 Hz, BB, HP, TP
• Reflex-threshold-test and cross-frequency-test
• Reflex and reflex-decay: Threshold, automatic, manuel
• Quick test, quick screening
• build-in thermal printer
• USB interface
• PDF print directly from the device
• Incl. database and software FastSwapApp
• 7" TFT color display
• Freely configurable tests
• power supply

additional options:

• Contra lateral reflex measurement: 50 bis 120 dB
• Frequencies contra lateral: 250, 500, 1000, 2000, 4000, 6000, 8000 Hz, BB, HP, TP
• High tone tympanometry 678, 800 und 1.000 Hz
