R36m

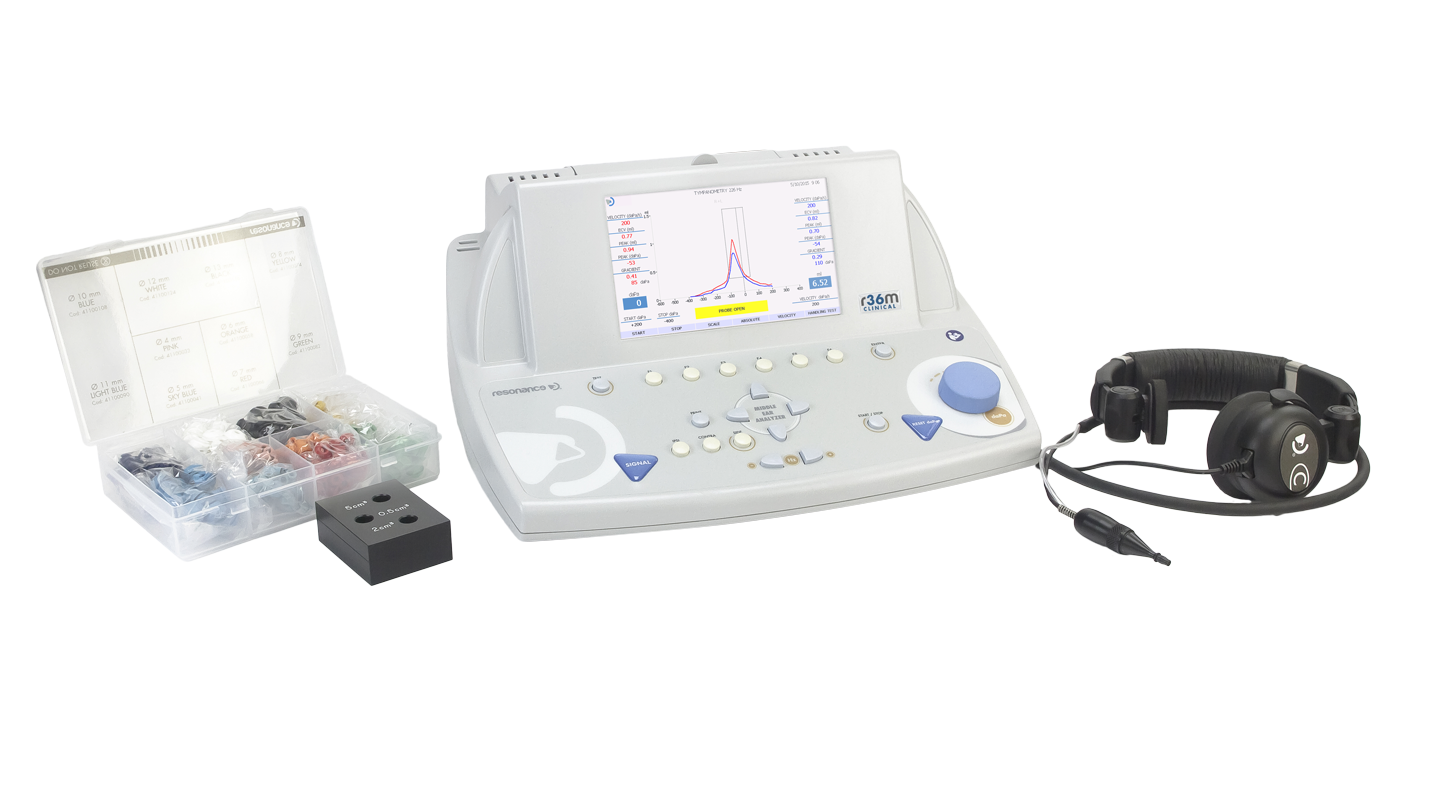

The automatic impedance audiometer can be used for the diagnostic as well as for the clinical tympanometry.

The easy-to-use device software and the automatic testroutines makes the derivation of the tympanometry and reflex measurement a childs play.

In the 7“ color display all important information can be seen and the measurement can be tracked in real time.

Using the animation software, children can be distracted from the measurement process and therefore you will get better results.

The outstanding thing about this tympanometer is a sturdy and easy-to-desinfect probe, made of metall.

This is particularly important in the context of increasingliy strict hygiene regulations in medical practices and clinics.

The new probe handle allows easy and quick placement in the auditory canal.

For documentation you can use the build-in printer or you can transfer the data to the PC and use our FastSwapApp

Technical Data:

• Pressure range up +200daPa to -400 daPa
• Ipsilateral reflexmeasurement: 50 up to 110 dB frequencies: 500, 1000, 2000, 4000 Hz, BB, HP, TP
• Reflex-threshold test and cross-frequency test
• Reflex and reflex-decay: threshold, automatic, manual
• Quick test, quick screening
• Build-in thermal printer
• USB interface
• PDF-print directly from the device
• Incl. database and software FastSwapApp
• 7" TFT color display
• Free configurable tests
• power supply
• ETF1, ETF2, ETF3 (intact, perforated, open eardrum)
• Special-tests: Growth-DLI and Non acoustic
• Reflex-latency test
• High-tone-tympanometry 678, 800 und 1.000 Hz

Optional

• Insert-contra-earphones with cable (only R26m and R26PT)
• FastSwapApp software tympanometry
• incl. modul data transfer, incl. database
• FastSwapSuite migration
